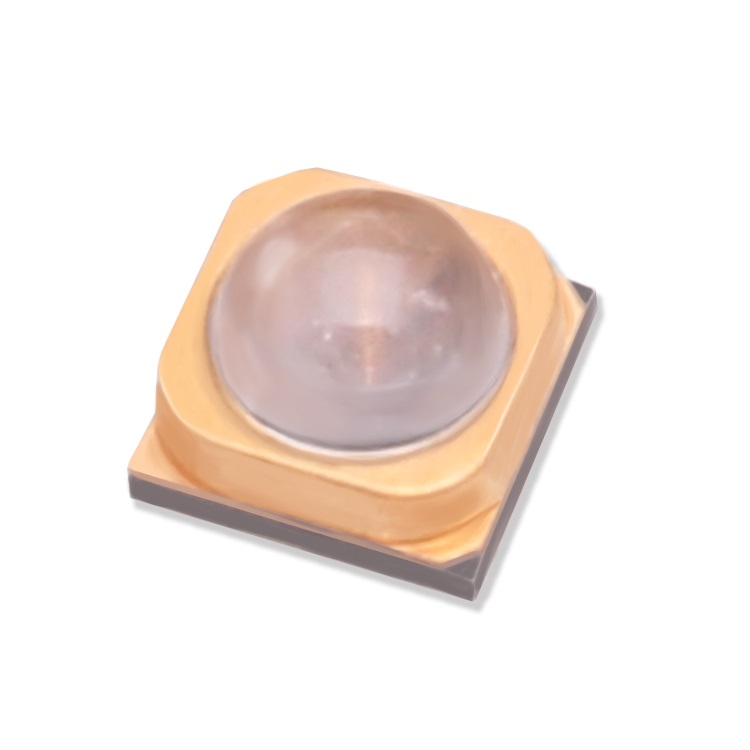

The 3535 Ceramic UV SMD led, can make 250nm,260nm,270nm,280nm,310nm,365-430nm.
Use 3535 Ceramic frame and the gold wire lines to weld, make sure the led have good heatsink ability.
The Power watts can make 1W,3W or 5W, other watts also can custom.
About 365-430nm,mormal kinds make 120deg and 60deg, also can make 30deg and 90deg,based on your demands.
Data Sheet:
| Part No. | Power | Wavelength(nm) | Luminous(lm) | Voltage(V) | Current(mA) | Angle(deg) |
| JH-3535V12C38 | 1 | 365-370 | 1-3 | 3.0-3.6 | 350 | 120 |
| JH-3535V12J30 | 1 | 365-370 | 1-3 | 3.0-3.6 | 350 | 120 |
| JH-3535V12J30 | 1 | 380-385 | 1-3 | 3.0-3.6 | 350 | 120 |
| JH-3535V12C38 | 1 | 385-390 | 1-3 | 3.0-3.6 | 350 | 120 |
| JH-3535V12G40 | 1 | 395-430 | 1-3 | 3.0-3.6 | 350 | 120 |
| JH-3535V12G45 | 3 | 395-430 | 20-40 | 3.2-3.6 | 700 | 120 |
| JH-3535V12G45 | 3 | 365-370 | 3-5 | 3.2-3.6 | 700 | 120 |
| JH-3535V12G45 | 3 | 365-370 | 1-3 | 3.2-3.6 | 700 | 120 |
| JH-3535V12G56 | 5 | 395-400 | 30-50 | 3.3-3.6 | 1500 | 120 |
| JH-3535V12G45 | 3 | 390-400 | 20-40 | 3.2-3.6 | 700 | 120 |
| JH-3535V12J45 | 3 | 365-370 | 3-5 | 3.2-3.6 | 700 | 120 |
| JH-3535V12J45 | 3 | 375-385 | 5-10 | 3.2-3.6 | 700 | 120 |
| JH-3535V12J45 | 3 | 385-390 | 10-20 | 3.2-3.6 | 700 | 120 |
| JH-3535V12J45 | 3 | 395-405 | 20-40 | 3.2-3.6 | 700 | 120 |
| JH-3535V12F45 | 3 | 395-400 | 20-40 | 3.2-3.6 | 700 | 120 |

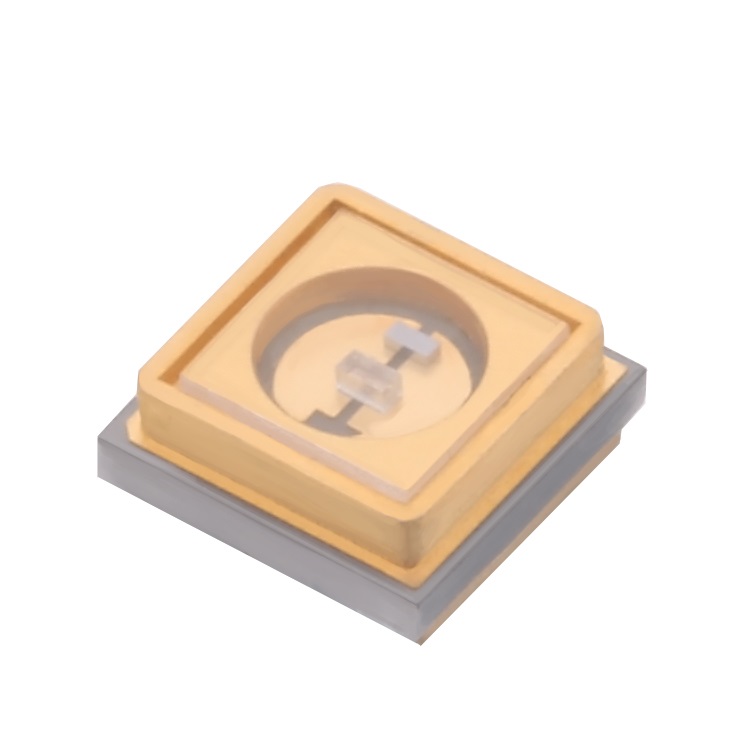

About 250nm,260nm,270nm,280nm,310nm, usually use the gold-plated frame to make.
Data Sheet:
| Wavelength | Description |
| 250-260NM | 20mil 10-18mW 5.0-7.0V 100mA |
| 250-260NM | 30mil 15-25mW 5.0-7.0V 150mA |
| 250-260NM | 40mil 40-50mW 5.0-7.0V 350mA |
| 260-270NM | 20mil 10-18mW 5.0-7.0V 100mA |
| 260-270NM | 30mil 14-26mW 5.0-7.0V 150mA |
| 260-270NM | 40mil 40-50mW 5.0-7.0V 350mA |
| 270-280NM | 20mil 5-7mW 5.0-7.0V 100mA |
| 270-280NM | 30mil 15-25mW 5.0-7.0V 150mA |
| 270-280NM | 40mil 40-60mW 5.0-7.0V 350mA |
| 270-280NM | 48mil 90-110mW 5.0-7.0V 500mA |
| 306-310NM | 10*20mil 2-5mW 5.0-7.0V 20mA |
| 306-310NM | 20mil 15-25mW 5.0-7.0V 100mA |
| 306-310NM | 30mil 15-35mW 5.0-7.0V 150mA |
| 306-310NM | 45mil 30-70mW 5.0-7.0V 350mA |
They are different wavelength, can be used for UV gluing, UV curing, UV marking, UV drying of printing inks and lacquers ,Nail art,Money checking,Mosquito killing ,3D pringing and so on!
We also can custom other kinds uv led, if you want to know more,please contact us!
